Naim's New Network Players

Naim's latest network players have been engineered on the basis of a completely new streaming system. Three years in the making, this innovative, Naim-designed digital technology surpasses anything they’ve done before. Combining state-of-the-art DSP with a rich, analogue soul, their network players deliver engaging, immersive sound quality to get the very best out of your music, whilst retaining Naim's classic styling. The range includes the ND5 XS 2NDX 2 and ND 555 – the first network player in the Naim 500 Series and the only one to match its power and audiophile-quality sound.


Be one of the first to receive updates and availability on Naim's New Network Players




ND 555


Pure musicality with Naim's most advanced streaming platform


NDX 2


Streamlined connectivity from an exceptionally engaging network player


ND5 XS 2


Naim's entry-level network player is the perfect introduction to music streaming.




ND 555

Pure musicality with Naim's most advanced streaming platform

The ND555 reference network player is quite simply the best source component Naim have ever developed. Drawing on decades of digital and analogue engineering experience, the ND 555 marries Naim's innovative new streaming platform with classic Naim analogue technology. It features a 40-bit SHARC processor with advanced signal processing, a suspended brass sub-chassis to isolate sound-critical circuits from vibrations and the best external power supply they’ve ever made. Whether you’re listening to Bonham’s solid groove or Coltrane’s dizzying scales, the ND 555 lets the music flow with astonishing ease and uniquely engaging musicality. Partnered with Statement or 500 series amplification, we believe the ND 555 is as close to live music as it gets.


EXPERIENCE BREATHTAKING DEPTH OF SOUND

ND 555 offers numerous ways to listen to your music with clarity and precision.



EXPERT CRAFTMANSHIP

The ND 555 is bristling with innovative technology from input to output. The streaming section uses the latest Naim network card featuring low-noise, high-speed LVDS to route the digital audio signal. The higher speed is capable of decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. Rather than the source acting as the digital timing master, our new streaming board turns things around and allows our DAC clock to control the flow of audio data. The data is integer-over-sampled in a SHARC DSP to an incredible 40-bit accuracy and fed into the Burr-Brown® PCM1704, a true R2R ladder DAC valued for its exceptional sound quality.

Naim’s renowned DR regulator technology, as used in their range of amplifiers and power supplies, makes its first appearance in a network player, providing ultra-pure DC voltage to the sensitive audio circuitry in the ND 555. The analogue stages use only high-grade through-hole components and are suspended on sprung sub-chassis with heavy brass plates to minimise the effects of microphony.



A RICH AUDIO HERITAGE

The ND 555 is the result of over four decades of audio engineering. From Naim's state-of-the-art streaming module to powerful, natural-sounding audio stages – every element of this network player is built on their design DNA, giving it that distinctive, captivating Naim sound.


3 Years and 25 engineers

Developing a new streaming platform was one of the biggest projects Naim has ever taken on. Naim engineers across all disciplines worked for three years to create a system that could make the most of online streaming services such as Spotify and Tidal while adding the future proof flexibility through Chromecast built in. The new streaming platform is complimented by a large full colour display, making the ND 555 second to none in terms of both audio performance and user experience.

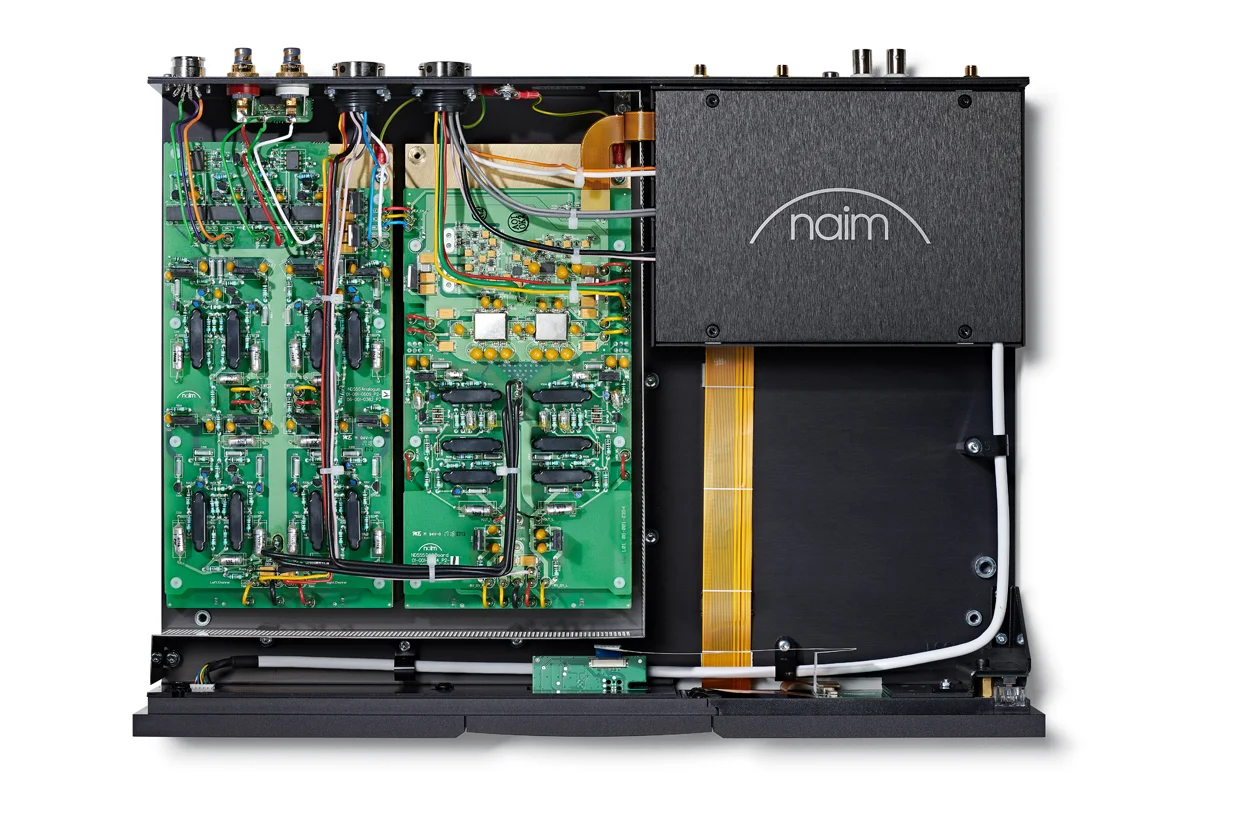

Isolating digital and analogue circuitry.

During development, Naim engineers produced several chassis prototypes to test different ways of isolating the ND 555's digital circuitry from its delicate analogue stages. a simple shield would have reduced the interference to a degree but the team wanted to find a more effective solution for Naim's reference player, finally arriving at completely separate housing within the main chassis it acts as a Faraday cage shielding other components from electrical noise, thus helping to increase the ND 555's performance even further.

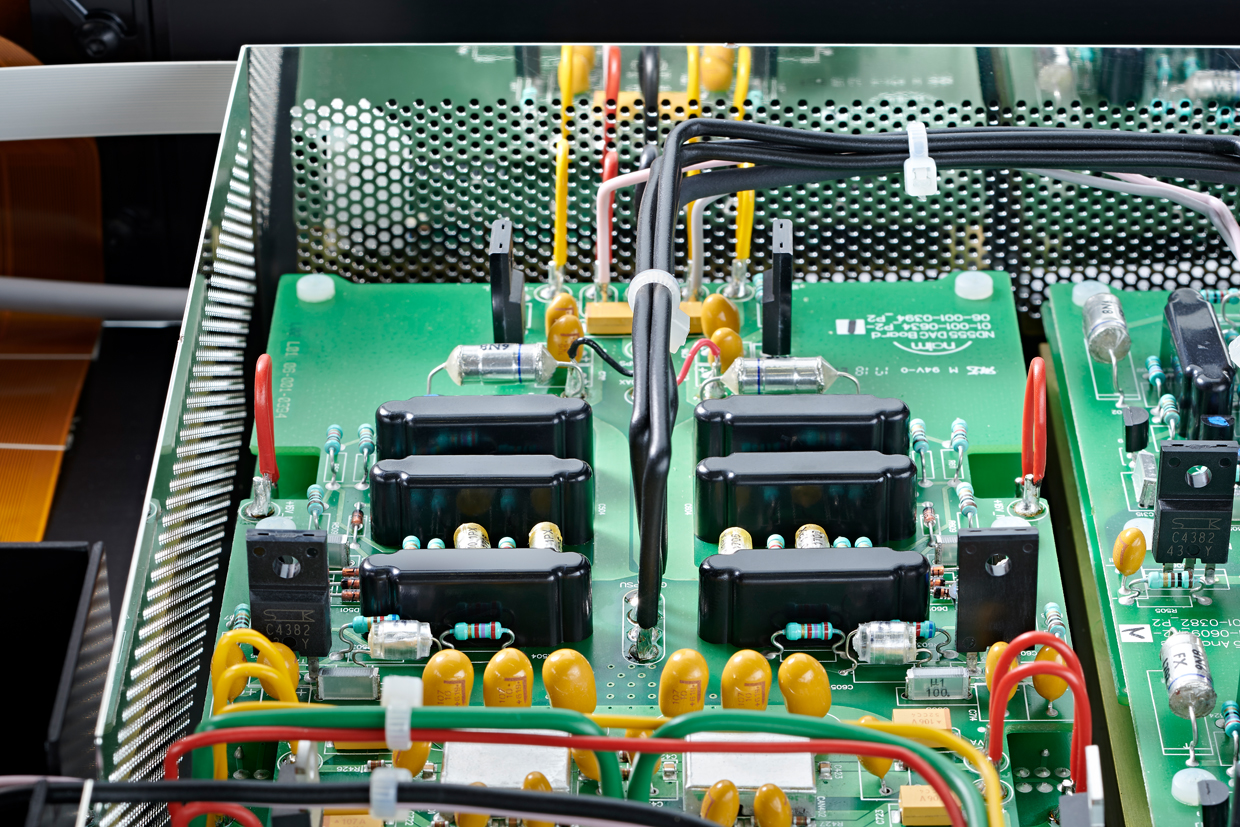

Ultra-clean power for maximum performance

The ND 555 uses a total of 13 Naim DR regulators to produce ultra clean voltage to the individual audio stages. Designed in-house to maintain a stable DC output voltage regardless of fluctuations in the supply voltage or the current draw from the output , Naim's DR regulator allows their circuits to operate at their absolute best with minimal noise and interference. Moreover the ND 555 power supply is housed in a separate unit to keep electro magnetic interference from the oversized toroidal transformer at bay.



ABSOLUTE CONTROL

There are several ways to control ND 555. The Naim App for iOS and Android gives you complete control over individual or multiple Naim products. You can access all of your music including radio pre-sets, streaming services and playlists, sync several Naim players for multiroom playback or explore artist discographies and biographies. The app also controls our Uniti Core music server (so there’s no need for two separate apps) and allows you to update your system wirelessly with a single tap.

For those who prefer a more tactile experience, a premium metal Zigbee® remote control is supplied. It requires no line of sight to the player, so you can take control whatever direction you’re facing. The front panel features a 5” colour display presenting album artwork as well as track information in crisp detail, and there are keys for most commonly used functions including standby and input selection.

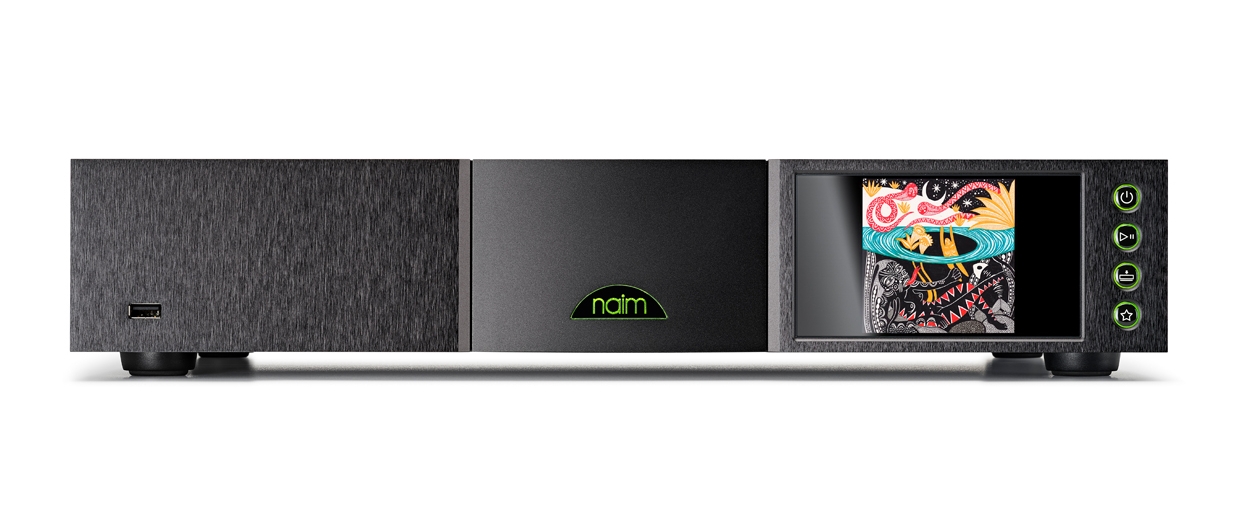

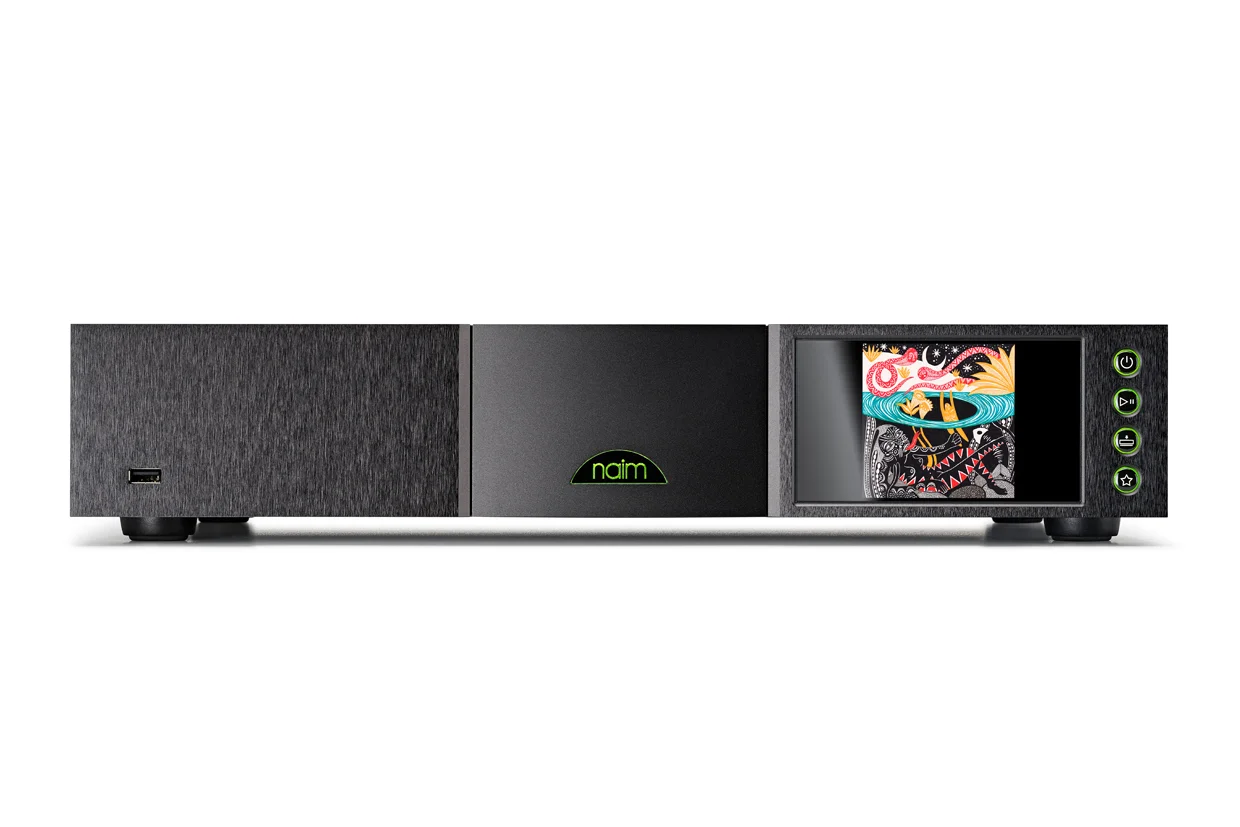

NDX 2

Streamlined connectivity from an exceptionally engaging network player

With its world-class performance, the versatile and upgradable NDX 2 embodies the current state of the art. A host of features such as high-res UPnPTM streaming, AirPlay, Chromecast built-in, Bluetooth (aptX HD), Spotify Connect, TIDAL, Roon compatibility, vTuner internet radio and multiroom streaming as well as digital and USB inputs provide all the connectivity you could wish for.

Naim's main focus in developing the NDX 2 network player, however, was its performance. Along with their bespoke streaming platform, Naim implemented an upgraded DAC and discrete analogue stages. These and numerous other improvements over its acclaimed predecessor make the NDX 2 a sonic force to be reckoned with, offering highly immersive and lively replay quality.

NDX 2 - Intro Product Shot.jpg


FEATURES


  • UPnP-enabled to allow streaming of audio files at up to 32bit/384kHz resolution from Naim Audio hard disk servers, network-attached storage (NAS) devices or any home computer
  • Supports a broad range of music formats: WAV, FLAC, DSD, Apple Lossless, AIFF, AAC, Windows Media-formatted files, M4A and MP3. Gapless playback on all file formats
  • Four 24bit/192kHz capable digital inputs (S/PDIF) to support optimum connection to external sources
  • 5” colour display presenting album artwork as well as track information
  • Built-in Chromecast allows you to stream from hundreds of supported smartphone or tablet apps (192kHz)
  • Apple AirPlay - stream music from your iOS device or from iTunes and Apple Music
  • Spotify Connect built-in to stream millions of songs from the world’s most popular streaming service
  • Native support for TIDAL streaming service with free 90 day trial of lossless HiFi tier
  • Front-panel USB port for replay of MP3 player and USB-stored audio (1.6A charge)
  • vTuner 5* full-service internet radio
  • Multiroom & Party Mode compatible
  • iOS and Android Naim Audio app for intuitive control
  • Bluetooth connectivity with aptX HD codec for quality audio playback
  • Thanks to RC5 system integration, you can control compatible amplifiers that are connected to your network player directly from the Naim app on a phone or tablet.
  • Bi-directional, Zigbee®-compatible remote control
  • Roon ready - turning your music collection into a beautifully laid out catalogue

TECHNOLOGY & CRAFT

The Burr-Brown® PCM1792A digital-to-analogue converter working alongside Naim's new streaming platform is one of the best available. They improved its performance even further by implementing their own digital filters and adding a discrete current-to-voltage converter immediately after the DAC.

The streaming section of the NDX 2 uses the latest Naim network card featuring lownoise, high-speed low-voltage differential signalling (LVDS) to route the digital audio signal. The higher speed is capable of decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. Rather than the source acting as the digital timing master, Naim's new streaming board turns things around and allows their DAC clock to control the flow of audio data. The data is integer-over-sampled in a SHARC DSP to an incredible 40-bit accuracy before it’s fed to the Burr-Brown DAC.

The NDX 2 features an integrated low-noise power supply with a custom-designed toroidal transformer and separate windings for the digital and analogue sections. However, the player can be upgraded with an external XPS DR or 555 PS DR power supply, giving you a marked increase in sonic authority and emotion.

During the development of the NDX 2, Naim engineers examined every detail, from mechanical construction, component selection and board layout. The result is a network player worthy of the Naim badge, with a sound that’s rich, detailed and engaging.

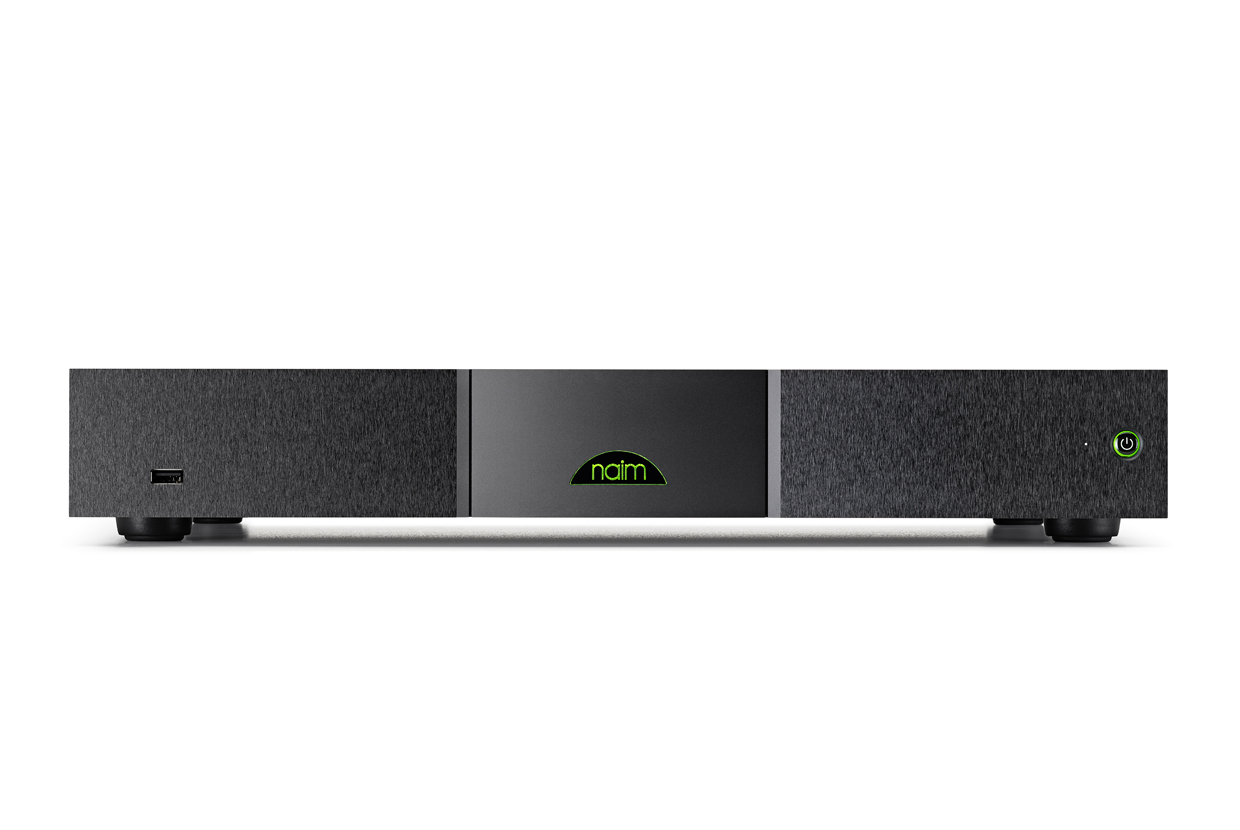

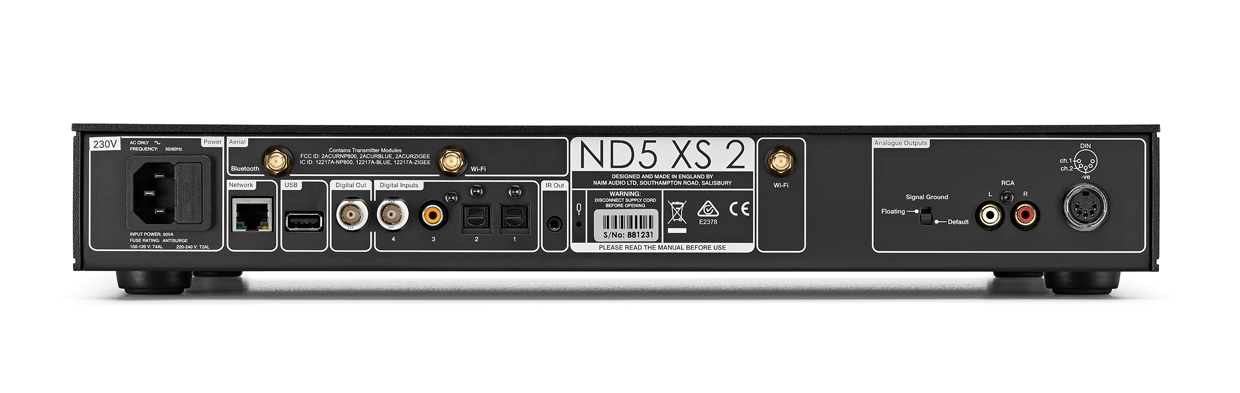

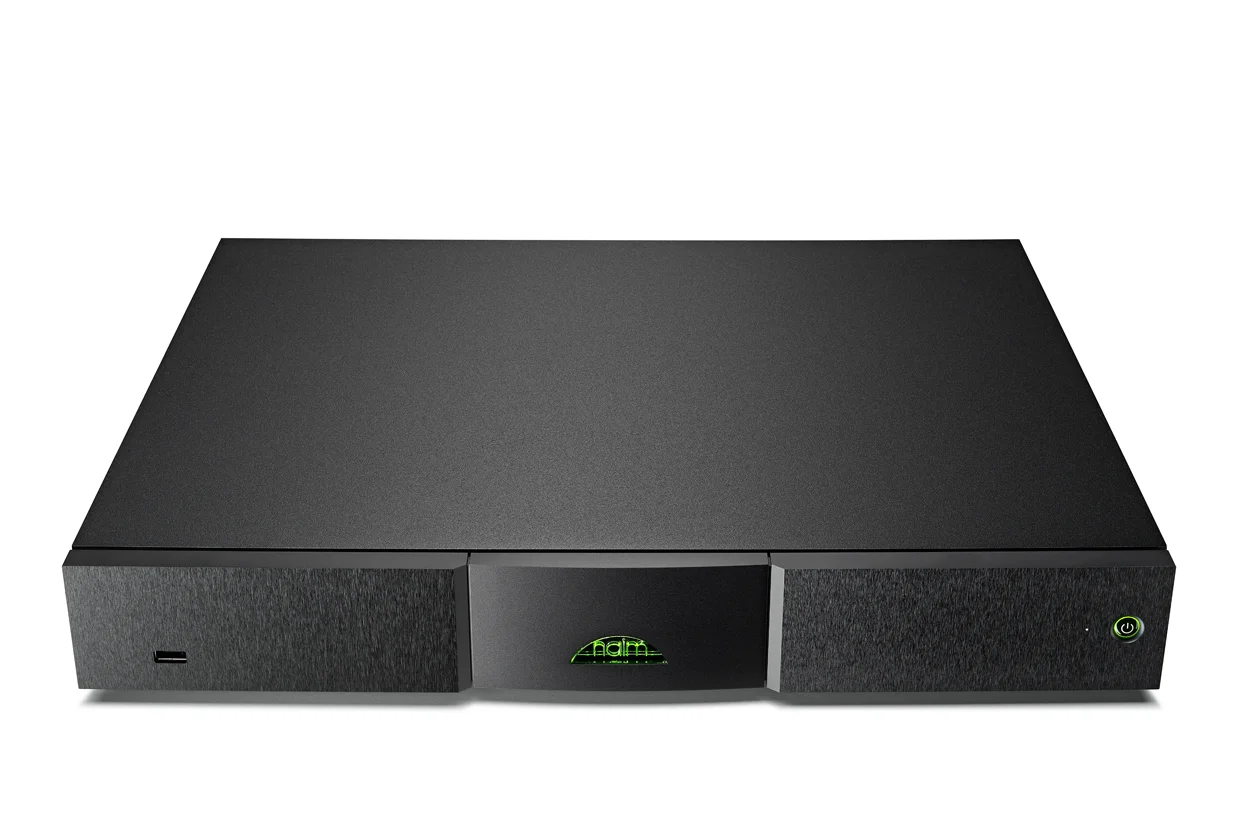

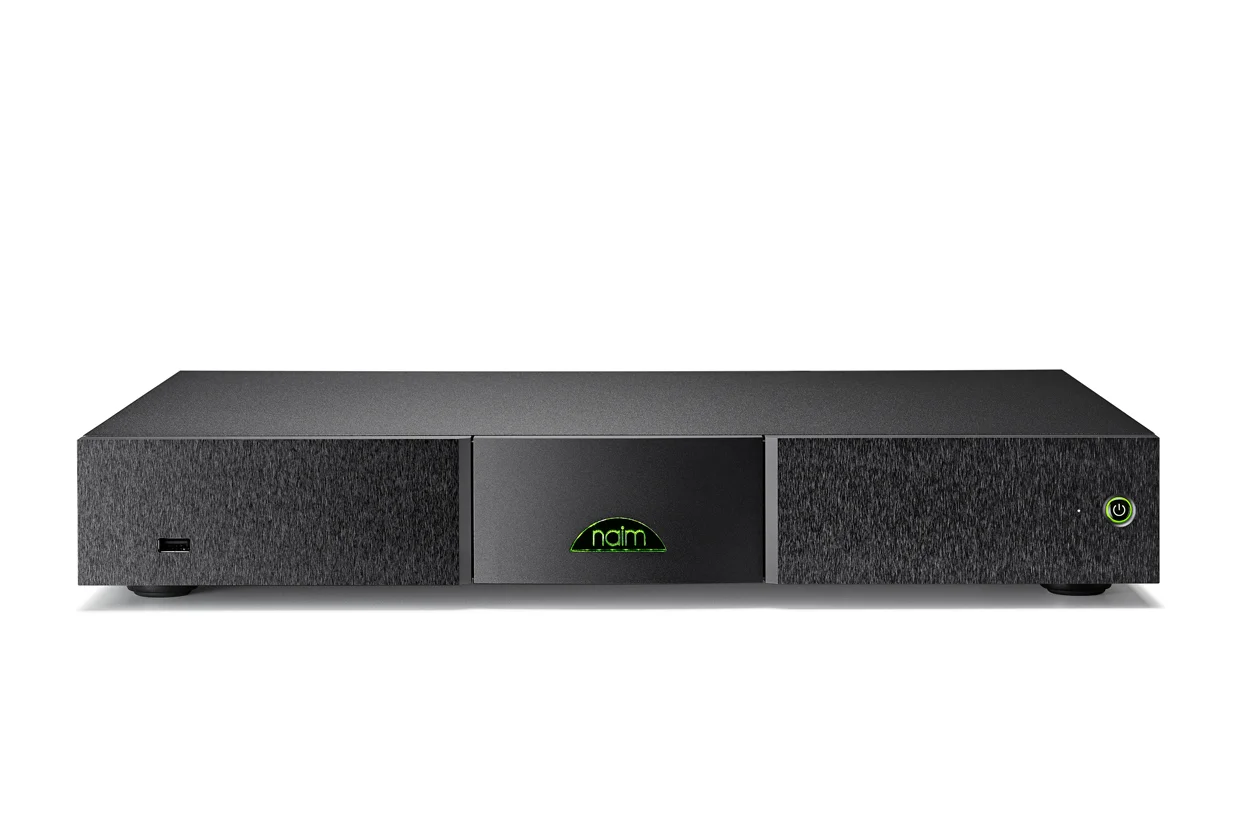

ND5 XS 2

Naim's entry-level network player is the perfect introduction to music streaming.

The ND5 XS 2 uses Naim's innovative new streaming platform with an expanded feature set. High-res UPnP™ streaming, AirPlay, Chromecast built-in, Bluetooth (apt X HD), Spotify Connect, TIDAL, Roon compatibility, internet radio and multiroom streaming – alongside digital and USB inputs for conventional connections – make this versatile player the ideal partner for one of Naim's integrated amplifiers.

Carefully selected and matched parts, an oversized toroidal transformer, decoupled PCB boards: the ND5 XS 2 benefits from classic Naim engineering and fastidious attention to detail to ensure that it delivers natural, engaging sound quality from all sources.



FEATURES

  • UPnP-enabled to allow streaming of audio files at up to 32bit/384kHz resolution from Naim Audio hard disk servers, network-attached storage (NAS) devices or any home computer
  • Supports a broad range of music formats: WAV, FLAC, DSD, Apple Lossless, AIFF, AAC, Windows Media-formatted files, M4A and MP3. Gapless playback on all file formats
  • Four 24bit/192kHz capable digital inputs (S/PDIF) to support optimum connection to external sources
  • Built-in Chromecast allows you to stream from hundreds of supported smartphone or tablet apps (192kHz)
  • Apple AirPlay - stream music from your iOS device or from iTunes and Apple Music
  • Spotify Connect built-in to stream millions of songs from the world’s most popular streaming service
  • Native support for TIDAL streaming service with free 90 day trial of lossless HiFi tier
  • Front-panel USB port for replay of MP3 player and USB-stored audio (1.6A charge)
  • vTuner 5* full-service internet radio
  • Multiroom & Party Mode compatible
  • iOS and Android Naim Audio app for intuitive control
  • Bluetooth connectivity with aptX codec for quality audio playback
  • Thanks to RC5 system integration, you can control compatible amplifiers that are connected to your network player directly from the Naim app on a phone or tablet
  • Roon ready - turning your music collection into a beautifully laid out catalogue

TECHNOLOGY & CRAFT

The streaming section of the ND5 XS 2 uses the latest Naim network card featuring low-noise, high-speed low-voltage differential signalling (LVDS) to route the digital audio signal. The higher speed is capable of decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. Rather than the source acting as the digital timing master, our new streaming board turns things around and allows our DAC clock to control the flow of audio data. The data is integer-over-sampled in a SHARC DSP to an incredible 40-bit accuracy before it’s fed to the PCM1791A Burr-Brown digital-to analogue converter.

Developing a new streaming platform was one of the biggest projects we have ever taken on. Naim engineers across all disciplines – electronic, industrial, acoustic and mechanical – worked for three years to create a system that could make the most of online services such as TIDAL and Spotify while adding future-proof flexibility through Chromecast built-in. Supporting faster data rates with dual-band Wi-Fi and the latest 802.11ac protocol, this robust platform was designed for the highest performance on every level.
